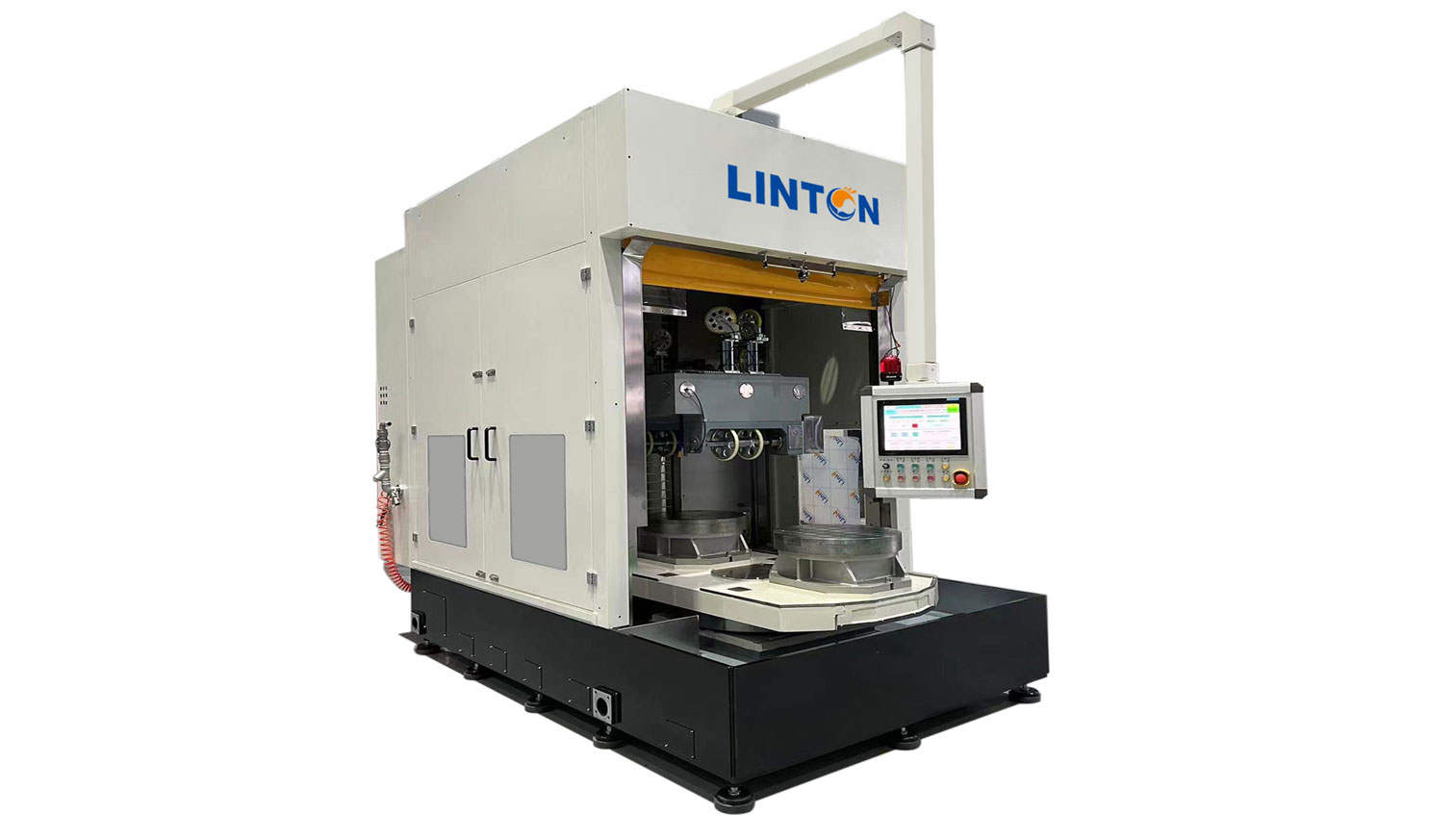

Diamond Wire Squaring Machine

Main Technical Index

  • Number of workpieces per cut

    Sliding table working range

    100~1000mm

  • Cutting rod size

    Φ≤550mm

    Wire storage capacity

    ≤20kM

  • Cutting rod length

    ≤750mm

    Wire Mesh Tension Range

    0~120N

  • Wire Speed

    ≤30m/s

    111

    Wire Breakage Rate

    ≤1% (Excluding Human Factors, Wire, and Non-Equipment Reasons)

  • Wire Diameter/Specification

    0.25~0.42mm/442D、BS60

    Equipment overall power

    59.5kW

  • Average Cutting Speed

    5~ 10mm/min

    Equipment Weight

    12t

  • Processing Margin Range

    110~ 230mm

    Equipment size

    3800*2100*3855mm

Equipment Advantages

1.Separated Stations: The rotary worktable separates the processing and loading/unloading stations, improving production efficiency.

2.High Stability: The cutting head uses a high-rigidity structure with dual motor drives, enhancing processing stability.

3.Stable structure: The column slide table is driven by a servo, providing precise up-and-down motion and reducing wire breakage risk.

4.Mature wire Management system: A mature wire management system with disc springs securing the take-up/pay-off reels, ensuring stability.

5.Accurate Positioning: The conical positioning sleeve ensures the take-up/pay-off reels are concentric with the shaft, improving assembly accuracy.

6.All indicators excellent: The equipment has a small shaft spacing, fast cutting speed, high production efficiency, and low wire breakage rate.
